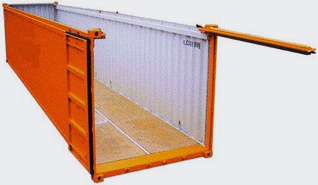

Open-top containers The walls of open-top containers are generally made of corrugated steel. The floor is made of wood.It has the following typical distinguishing structural features. The roof consists of removable bows and a removable tarpaulin. The door header may be swivelled out. These two structural features greatly simplify the process of packing and unpacking the container. In particular, it is very easy to pack and unpack the container from above or through the doors by crane or crab when the roof is open and the door header is swivelled out. It should be noted, however, that the purpose of the roof bows of an open-top container is not solely to support the tarpaulin but also to contribute to container stability. Flatracks are therefore more suitable for overheight cargoes.Lashing rings, to which the cargo may be secured, are installed in the upper and lower side rails and the corner posts. The lashing rings may take loads of up to 1000 kg.Usual open-top container dimensions are 20' and 40'. Open-top container of steel: 40' long and 8'6" high with corrugated walls, removable tarpaulin and wooden floor Internal dimensions Weights Volume [m砞 Length [mm] Width [mm] Height (middle) [mm] Height (side) [mm] Max. gross wt. [kg] Tare weight [kg] Max. payload [kg] 12023 2335 2378 2318 30480 3800 26680 66.7 12038 2338 2363 2313 30480 3650 26830 66.7 12025 2330 2360 2325 30480 3890 26590 66.0 12038 2336 2370 2320 30480 3700 26780 65.3 12029 2342 2376 2326 30480 3810 26670 65.5 12022 2346 2365 2315 30480 3740 26740 65.3 12007 2315 2362 2317 30480 3950 26530 65.0 12005 2330 2380 2340 30480 4350 26130 65.5 20' open-top container Type Roof openings Door openings Length Length Width Width Width Width Width Width Height Height A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] H [mm] I [mm] K [mm] Z 5583 5488 2230 1928 - 2235 1928 2230 2291 2194 Z 5660 5440 2208 1860 - 2335 1848 2208 2290 1889 Z 5770 5452 2232 - 1904 2305 1834 2232 2218 2033 Z 5415 5360 2205 - 1880 2335 1880 2205 2280 2125 40' open-top container Type Roof openings Door openings Length Length Width Width Width Width Width Width Height Height A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] H [mm] I [mm] K [mm] Z 11800 11317 2205 1728 - 2235 1840 2205 2287 1889 Z 11787 11563 2208 1850 - 2335 1844 2208 2287 1896 X 11917 10837 2128 1600 1816 2330 1816 2128 2201 1957 Y - 11550 2220 - - 2336 1845 2220 2292 2125 Z 11544 11444 2230 - 1885 2336 1885 2230 2280 2146 Z 11550 11515 2205 - 1880 2335 1880 2205 2280 2125 Y - 11379 2205 - - 2315 1855 2205 2266 1957 X 11825 11496 2100 1774 1774 2335 1750 2100 2180 2180
