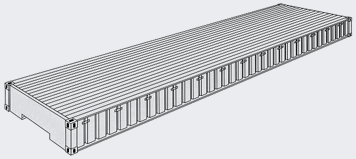

Platforms(Plats) Platforms consist solely of a floor structure with extremely high loading capacity; they have no side or end walls. This high loading capacity makes it possible to concentrate heavy weights on small areas. A platform consists of a steel frame and a wooden floor structure. Platforms are available in 20' and 40' sizes. 40' platforms have a gooseneck tunnel at each end. Lashing rings, to which the cargo may be secured, are installed in the side rails. The lashing rings may take loads of up to 3000 kg. Platform: steel frame with softwood floor, 20' long and 1' 1 1/4" high Dimensions Weights Length [mm] Width [mm] Floor height [mm] Max. gross wt. [kg] Tare weight [kg] Max. payload [kg] 6058 2438 335 24000 2100 21900 Platform: steel frame with softwood floor, 40' long and 2' high Dimensions Weights Length [mm] Width [mm] Floor height [mm] Max. gross wt. [kg] Tare weight [kg] Max. payload [kg] 12192 2438 610 45000 4200 40800
